LIAN LI Re-invents the ATX Layout with the LANCOOL 207

October 7, 2024

SaveSavedRemoved 0

LIAN LI Industrial Co. Ltd., a leading manufacturer of chassis and PC accessories, launches the latest addition to its LANCOOL series with the LANCOOL 207. This 45.5L M-ATX-sized case, despite its compact size, offers ATX compatibility. It fits a 360mm radiator on top, ATX motherboards, ATX PSUs (up to 160mm long), and GPUs up to 375mm long, all within a space-saving form factor.

The case has pre-installed 2 x 140mm ARGB high airflow fans at the front and 2 x 120mm PWM fans at the bottom for optimal cooling. Large mesh panels on the front, top, and bottom improve ventilation. The offset motherboard position maximizes cooling for the GPU, and the front PSU installation aids in cable management and provides tidy organization. The LANCOOL 207 is available in black and white at an MSRP of $79.99 and $84.99 respectively.

Redesigned Motherboard Tray Layout

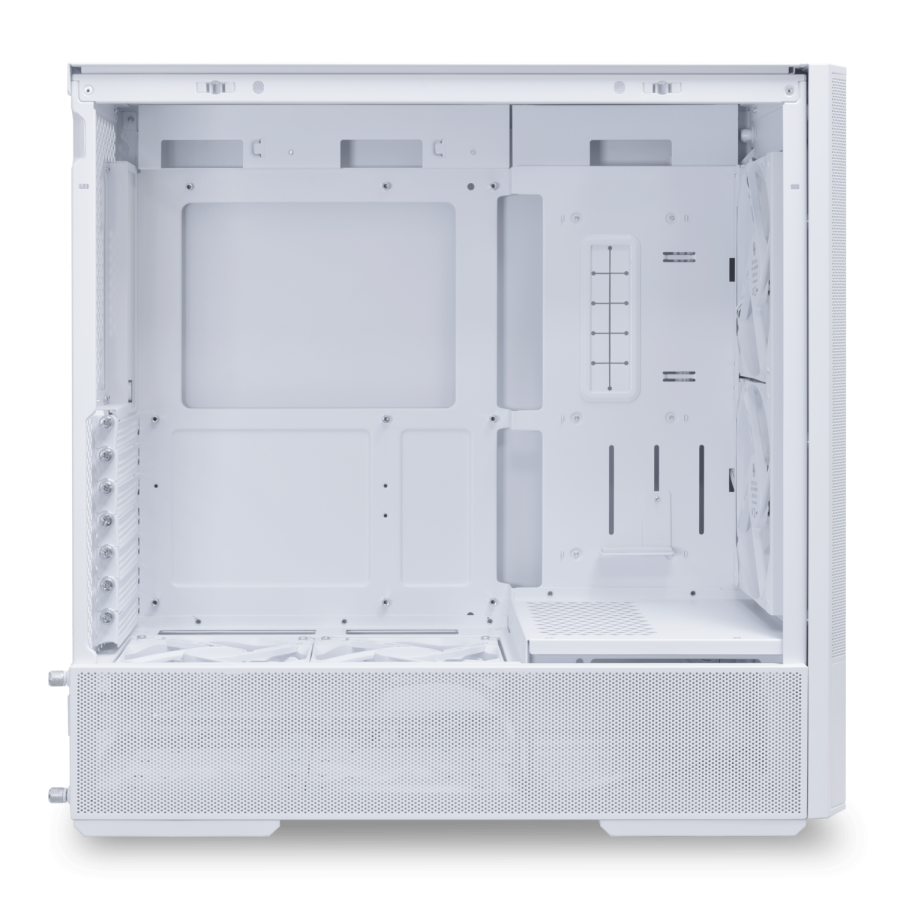

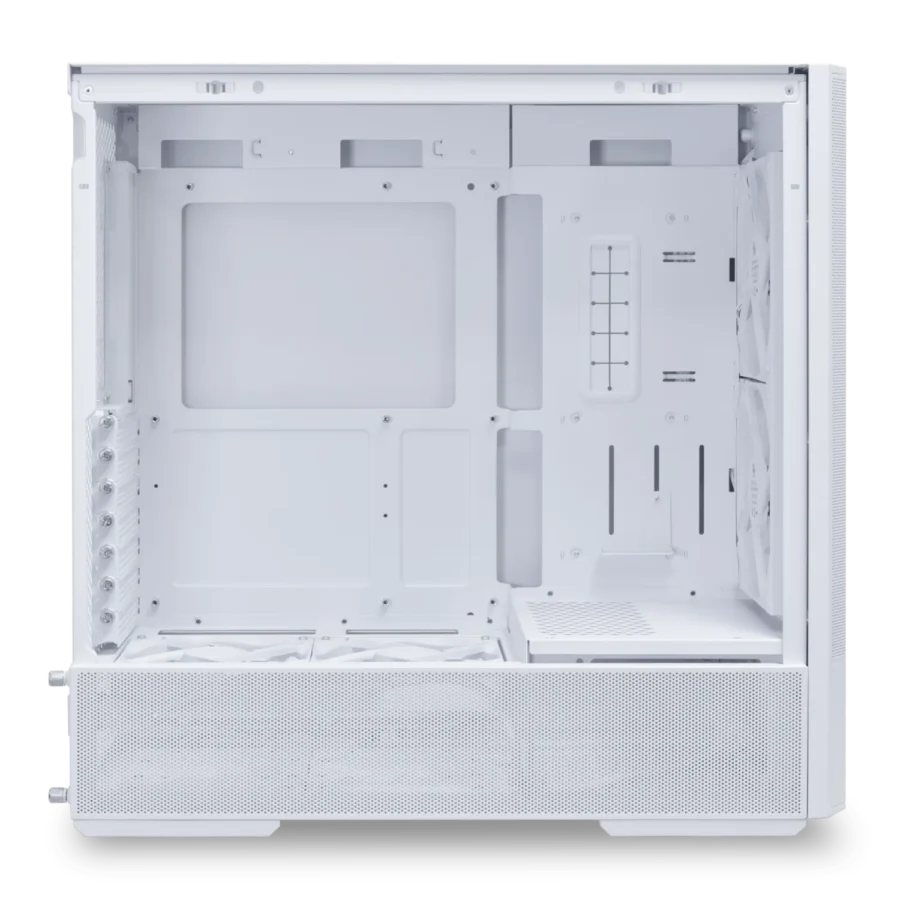

The LANCOOL 207 achieves a smaller form factor without compromising compatibility, thanks to its redesigned motherboard tray layout and front PSU placement. Moving the PSU to the front frees up space below the motherboard, allowing it to be lowered slightly. This creates clearance at the top for thick fans and radiators. The motherboard tray is recessed closer to the right side panel, providing additional width clearance for 140mm fan support without expanding the case’s width. The LANCOOL 207 supports GPUs up to 375mm long and includes a pre-installed, adjustable anti-sag bracket that can be repositioned vertically and horizontally.

Unique PSU Installation

The LANCOOL 207 PSU is located at the front of the case using an included PSU adapter cable. The orientation of the PSU installation has been adjusted so that the connector ports face outwards, making it easier to plug in cables. Cable management has been enhanced by moving it towards the front of the case, reducing its width and improving organization. Additionally, the case comes with three dual-layered fasteners for neat and efficient cable management.

Enhanced Airflow Design

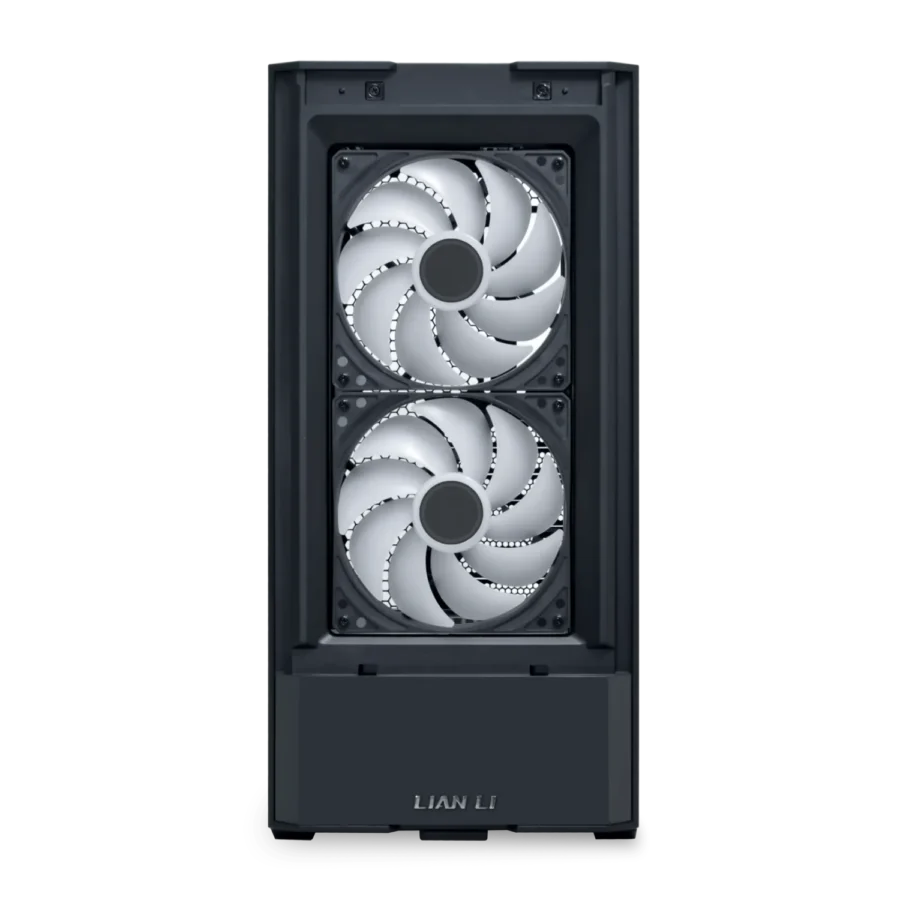

Featuring large mesh panels on the front, top, and bottom, the LANCOOL 207 delivers excellent ventilation. Its shorter depth directs airflow from the front top fan to the CPU, while an offset motherboard allows two bottom fans to cool the GPU efficiently. The case includes two pre-installed 30mm thick 140mm ARGB and PWM fans with infinity mirrors at the front capable of reaching up to 1900RPM and providing a massive airflow of 109.3 CFM, and two 120mm PWM fans at the bottom featuring an 11-blade design, offering powerful cooling with speeds up to 1950 RPM.

Pre-installed Fan Specifications
Size	120 x 120 x 25mm	140 x 140 x 30mm
Speed	500 to 1950 RPM	450 to 1900 RPM
Airflow	71.1 CFM	109.3 CFM
Pressure	1.99 mmH20	3.3 mmH20
Noise	30.81 dBA	34.86 dBA

Additional Accessories

The LANCOOL 207 is compatible with the UNIVERSAL 4-SLOTS VERTICAL GPU KIT for users wanting to display their GPU at its best angle. A rubber pad is also provided to support the GPU above the PSU when installed vertically.

Availability

The LANCOOL 207 is available on October 4th, 2024, at an MSRP of $79.99 for the black, and $84.99 for the white version.

For more information on the LANCOOL 207, please visit: https://lian-li.com/product/lancool-207/

Specifications

Model	LANCOOL 207
Case Type	Tower Chassis
Dimensions	(D) 455.6 x (W) 219 x (H) 456mm
Color	Black / White
Material	Steel 4.0mm tempered glass Aluminum
Motherboard Support	ATX (Width = 240mm) MICRO-ATX MINI-ITX
Expansion Slot	7
Storage	2 x 3.5ʹʹ HDD or 2.5ʹʹ SSD
GPU Length Clearance	410mm(Max)
CPU Cooler Height Clearance	167mm (Max.)
PSU	ATX (Under 160mm)
Fan Support	(Front) 2 x 140mm (Pre-installed) (Top) 3 x 120mm / 2 x 140mm (Bottom) 2 x 120mm (Pre-installed) (Rear)1 x 120mm
Radiator Support	(Top) 360 / 280 / 240
I/O PORTS	1 x Power Button 2 x USB 3.0 1 x USB type C 1 x Audio
Dust Filters	1 x Bottom
