LIAN LI Industrial Co. Ltd., announces its first performance-focused UNI FAN with the P28, a 120mm PWM fan available in black, and in white. With a 28mm thick frame, Liquid Crystal Polymer blades, Fluid Dynamic Bearing, and 3-speed modes: quiet operation, balanced noise/performance, and maximum performance, the P28 is geared towards performance. As with all UNI FANs, the P28 can be interconnected to create clusters of fans capable of being powered via a single cable, and up to 2 clusters can be bridged with an extension cable. For users wanting added flare without sacrificing performance, an optional Side RGB Strip accessory is added to the side of the fan.
The P28 features a 9-blade design made of liquid crystal polymer (LCP), a stronger material capable of supporting higher speeds without deformation for tighter tolerances with the fan frame (0.6mm). Combined with an overall frame thickness of 28mm, the increase in the surface area of the blades results in added performance. In addition, the P28 is equipped with Fluid Dynamic bearings (FDB) for the fan motor to operate quieter and smoother. The use of a thicker fan frame, sturdy LCP blade material, and the FDB result in great performances, and quieter operation.
The P28 comes with a controller which can be magnetically mounted anywhere in the case and offer 3-speed profiles. Users have the option to opt for quieter operation in L mode, a perfect balance of noise and performance in M mode, or maximum performance in H mode.
| UNI FAN P28 Performance | ||||
| Mode | Airflow | Static Pressure | Noise | Speed |
| L | 44.94 CFM | 1.3 mmH2O | 20.4 dB(A) | 200 – 1300 RPM |
| M | 77.76 CFM | 3.62 mmH20 | 28.1 dB(A) | 200 – 2200 RPM |
| H | 92 CFM | 4.79 mmH20 | 32.1 dB(A) | 200 – 2600 RPM |

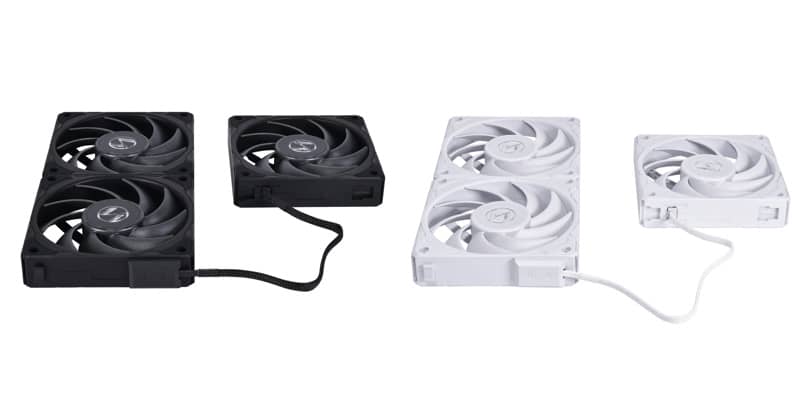

The P28 can be interlocked and daisy-chained together to create clusters of fans that only require a single cable to be powered on. The innovative approach introduced with the original UNI FAN SL120 greatly reduces the number of cables required to power a large number of fans, making cable management a breeze. In addition, the P28 has removable interlocking keys to improve compatibility with radiator fittings, and support for an extension cable to bridge two clusters of fans (up to 6 fans max) to a single controller, further reducing cable clutter.
Optional Side RGB Kit

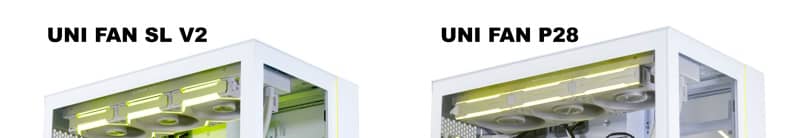

While the P28 is focused on performance, users also have the option to replace the side aluminum strip with a Side ARGB Strip accessory. The strip can be added to a single side of the fan, or both, and is powered via a standard 5V ARGB cable and can be daisy-chained seamlessly like the fans. By adding the side ARGB strips to the P28, available in black and white, users can achieve the same sophisticated RGB look as the UNI FAN SLV2, without sacrificing performance.
The UNI FAN P28 is available for pre-order starting May 12th, 2023.
| UNI FAN P28 Pricing | |||
| Single Pack | Triple Pack (With controller) | Triple Pack Side ARGB Strip | |
| White | $25.99 | $74.99 | $19.99 |
| Black | $25.99 | $74.99 | $19.99 |
For more information about the UNI FAN P28, please visit: https://lian-li.com/product/uni-fan-p28/
| UNI FAN P28 Specifications | ||||
| Model | 12P28.1B | 12P28.3B | 12P28.1W | 12P28.3W |
| Color | Black | White | ||
| Dimensions | 120 x 120 x 28mm | |||
| Materials | LCP/PBT/PC/Aluminum | |||
| Rated Voltage | DC 12V (fan) & 5V (LED) | |||
| Fan Speed | Low mode 200 – 1300 RPM (min-max) Medium mode 200 – 2200 RPM (min-max) High mode 200 – 2600 RPM (min-max) | |||
| Air Pressure | Low mode 1.3 mmH2O Medium mode 3.62 mmH2O High mode 4.79 mmH2O | |||
| Air Flow | Low mode 44.94 CFM Medium mode 77.76 CFM High mode 92 CFM | |||
| Acoustic Noise | Low mode 20.4 dB(A) Medium mode 28.1 dB(A) High mode 32.1 dB(A) | |||
| Bearing Type | Fluid Dynamic Bearing (FDB) | |||
| Warranty | 6 years | |||
