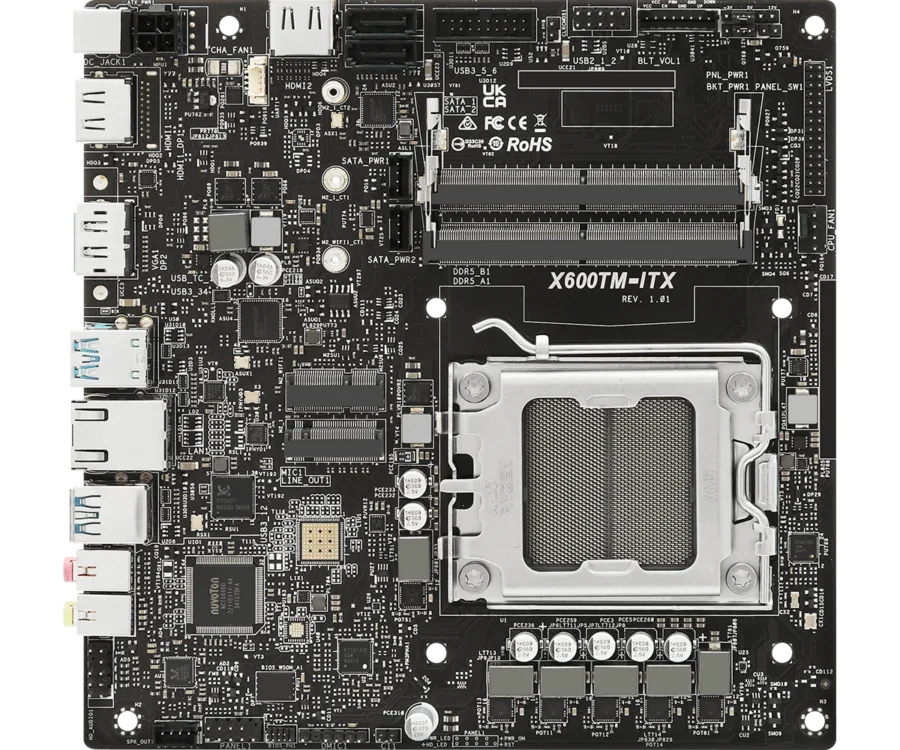

ASRock X600TM-ITX the World’s First Thin Mini ITX Motherboard Supporting AMD AM5 Processors Unveiled
ASRock, the global leading manufacturer of motherboards, graphics cards, mini-PCs, and gaming monitors, is proud to announce the release of the ASRock X600TM-ITX, the world’s first thin mini ITX motherboard supporting AMD AM5 series processors. This revolutionary motherboard brings exceptional performance and versatile features to users, enhancing their computing experience in various applications.
Table of Contents
Exceptional Performance with AMD AM5 Processors
The ASRock X600TM-ITX stands out as the first thin mini ITX motherboard compatible with AMD AM5 series processors in the world. This compatibility ensures unprecedented performance, allowing users to experience faster computing speeds, better multitasking capabilities, and improved overall efficiency. Ideal for those who demand power in a compact form factor, the ASRock X600TM-ITX sets a new standard in motherboard technology.
Advanced Memory Support for X600TM-ITX
Supporting dual channel DDR5 memory up to 6400+(OC)* with a maximum capacity of 96GB, the ASRock X600TM-ITX offers blazing-fast data processing and seamless multitasking. This advanced memory capability ensures that users can run complex applications smoothly, whether for gaming, content creation, or professional tasks.
Eight Flexible I/O Configurations for Customizable Connectivity

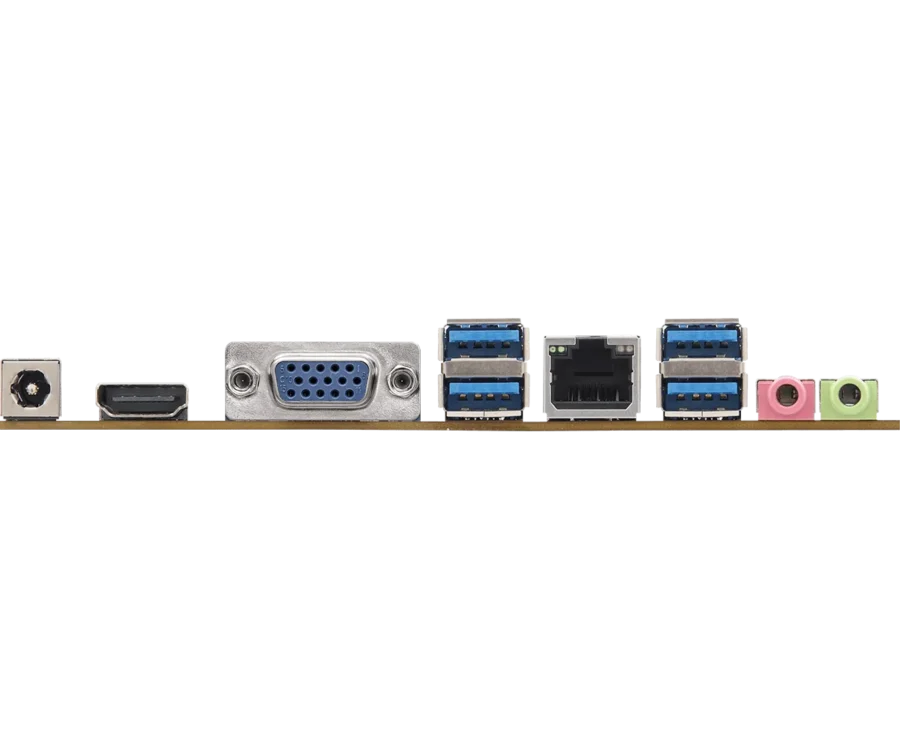

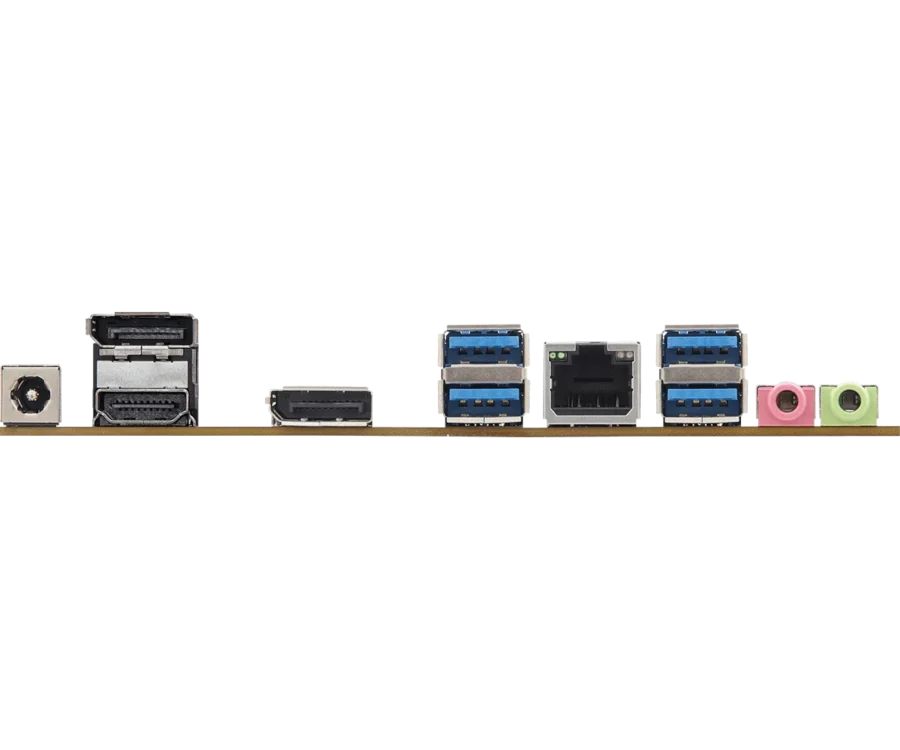

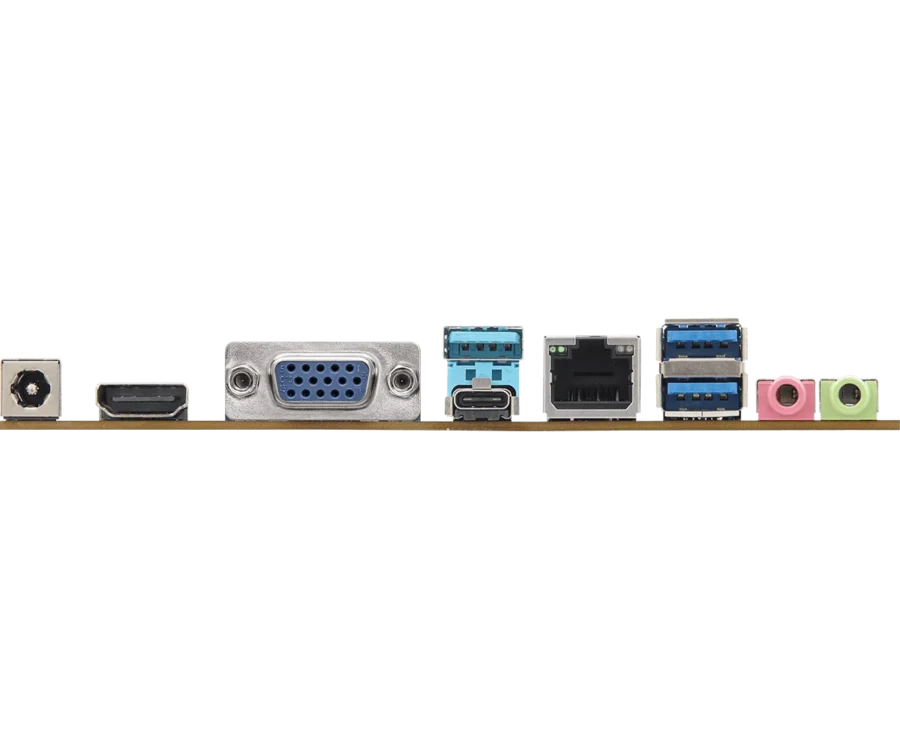

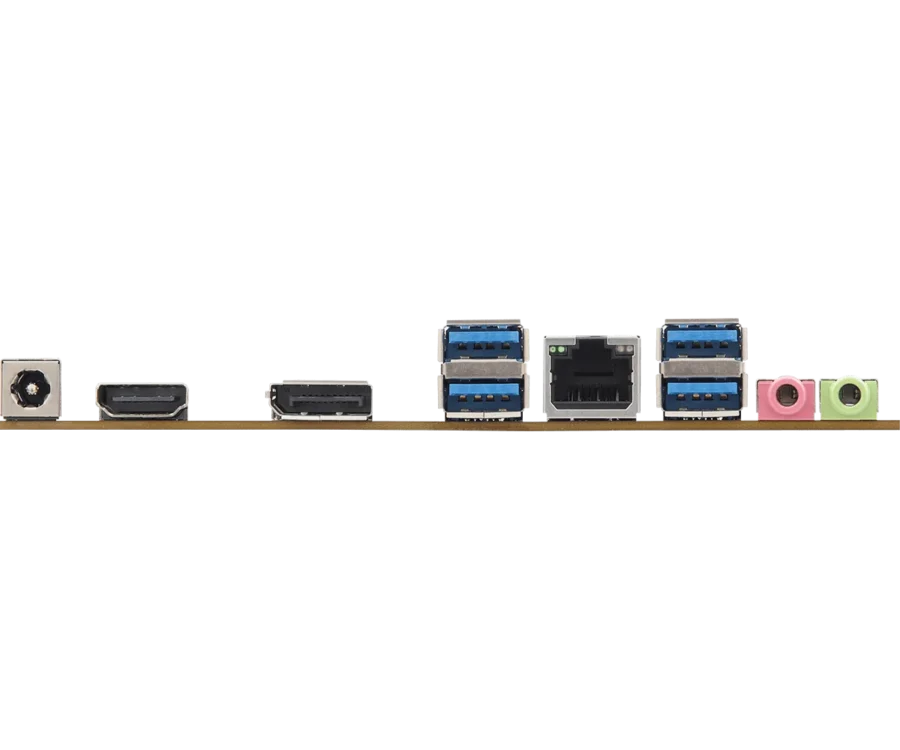

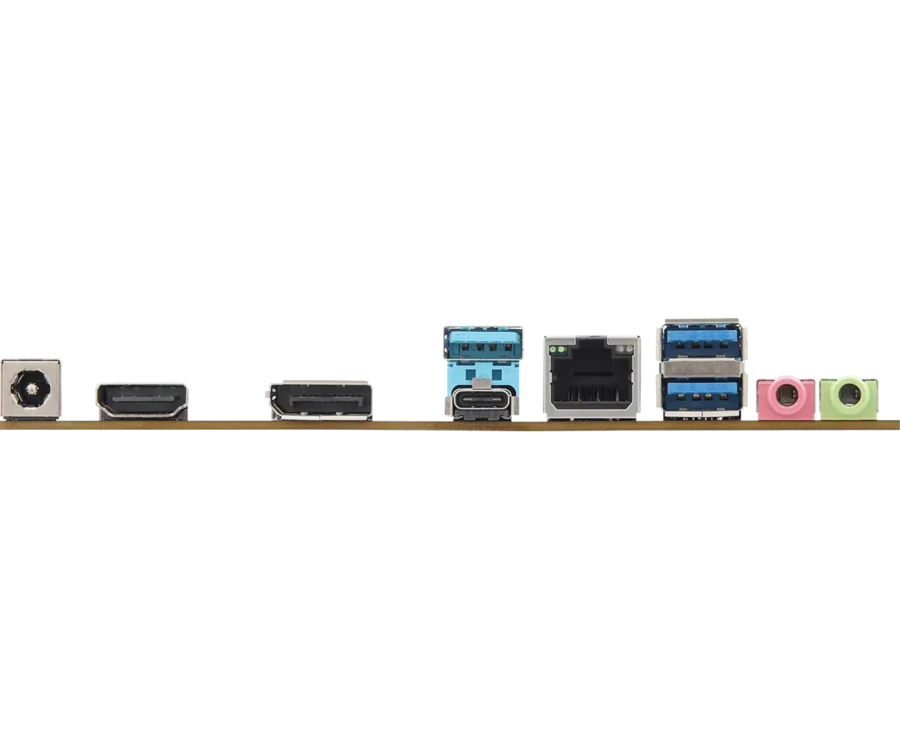

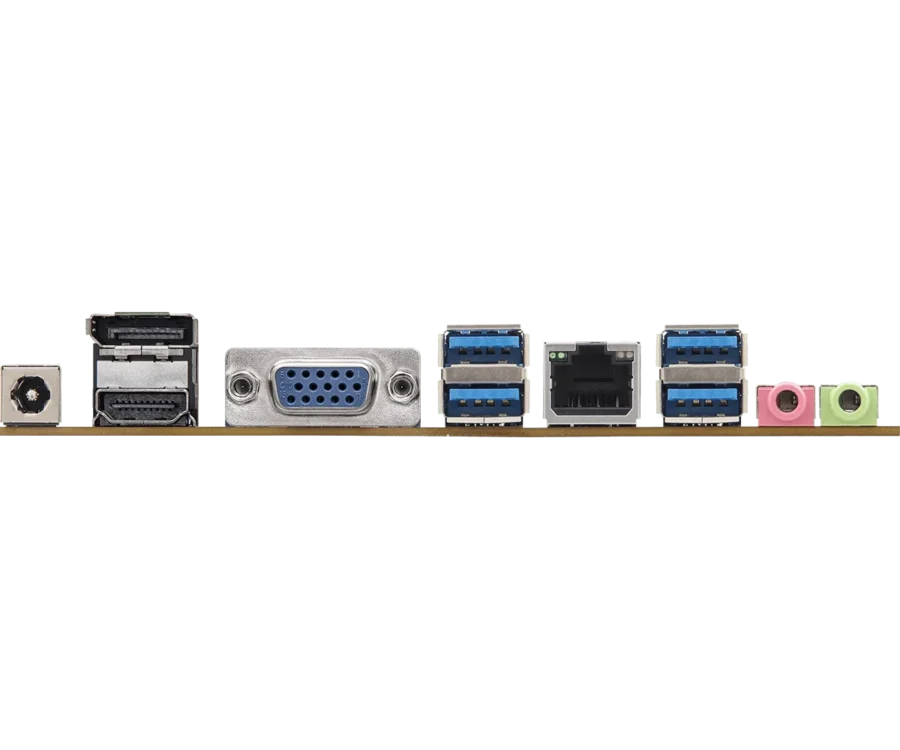

The ASRock X600TM-ITX motherboard features a Flexible I/O Design, allowing users to tailor their I/O configuration to meet specific requirements. Our innovative co-lay setup provides up to eight customizable I/O configurations, such as swapping DisplayPort for D-sub, converting HDMI to HDMI and DisplayPort, or changing Type-C to Type-A. This ensures that users get the precise connectivity solutions they need, enhancing the versatility and functionality of the system.
Versatile Connectivity and Storage Options
The ASRock X600TM-ITX features comprehensive connectivity options with six display outputs, allowing users to flexibly choose four. In addition to the default LVDS, the available options include two HDMI ports, two DisplayPort, and one VGA, giving customers the flexibility to customize their display setup. This versatile configuration supports multiple monitors, enhancing productivity and delivering an immersive entertainment experience. Furthermore, the motherboard supports four storage devices, including two SATA3 connectors and two Hyper M.2 sockets, providing ample space and faster data access for quick boot times and efficient file management.
Optional TPM 2.0 and DASH LAN for Enhanced Security and Management
For users prioritizing security and remote management, the ASRock X600TM-ITX offers optional TPM 2.0 and DASH LAN. TPM 2.0 provides hardware-based security, protecting sensitive data and enhancing network security. Meanwhile, DASH LAN enables secure out-of-band and remote management, ensuring efficient and reliable system administration.
With its cutting-edge features and unmatched performance, the ASRock X600TM-ITX is set to redefine the thin mini ITX motherboard market. Experience the future of computing with ASRock’s latest innovation.
| CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors – Supports CPU up to 65W – 4+1+1 Power Phase design |
| CPU Cooler | – Supports CPU coolers with Intel® LGA1700 (78mm x 78mm) mounting holes* *Please note that a CPU cooler compatible with proprietary AMD socket backplate is required. |
| Chipset | – AMD X600 |
| Memory | – Dual Channel DDR5 Memory Technology – 2 x DDR5 SO-DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) – Max. capacity of system memory: 96GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – Three graphics output options: HDMI, LVDS, D-Sub ports – 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz (HDMI x 1 port (Rear) ) – 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz (HDMI x 1 port (Internal) ) * (Optional) 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP1) – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz (Rear DP2) * (Optional) 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz – 1 x LVDS, supports max. resolution up to Full HD (1920×1080) 60Hz |
| Audio | – Realtek ALC269 Audio Codec – 1 x MIC IN – 1 x Line out |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H * (Optional) Realtek RTL8111FP – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Slots | – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | – 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* *Supports NVMe SSD as boot disks |
| Connector | * (Optional) 1 x Onboard TPM 2.0 (INFINEON SLB9672 or NUVOTON NPCT750AADYX) – 1 x Chassis Intrusion Header – 1 x Panel Voltage Selection Header – 1 x Backlight Inverter Voltage Selection |
| Header | – 1 x FPD Brightness Header – 1 x Panel Off Header – 1 x LVDS Connector – 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. – 1 x 4 pin 19V Power Connector * (Optional) 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x Front Panel Audio Connector – 1 x Internal Speaker Header (4-Pin) – 1 x Digital MIC Header – 2 x SATA Power Connectors – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

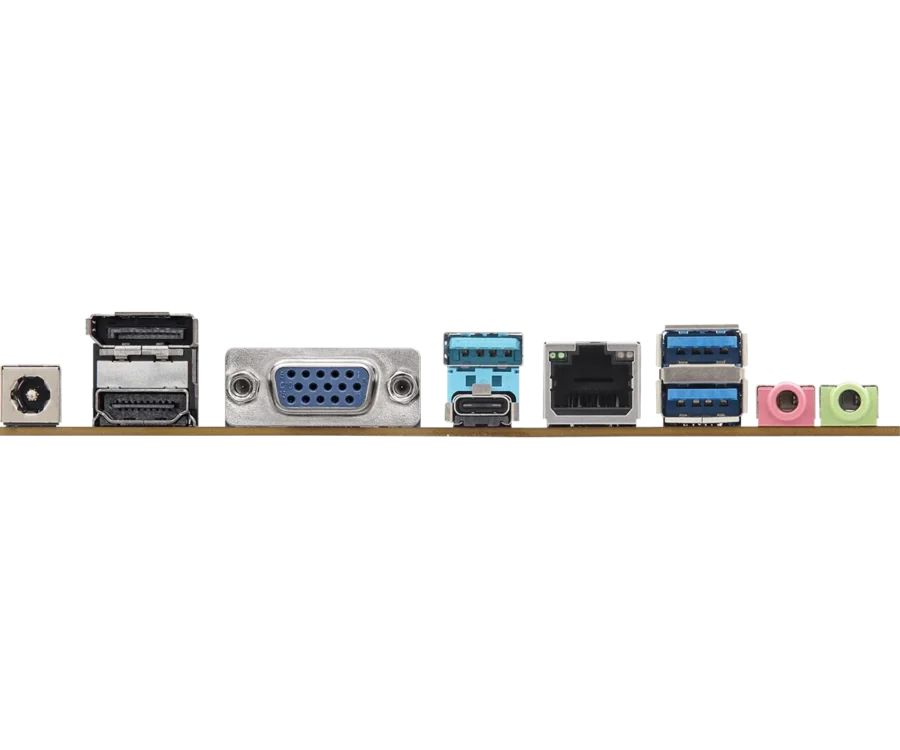

| Rear Panel I/O | – 1 x DC Jack (Compatible with the 19V power adapter) – 1 x DisplayPort 1.4 (DP2) * (Optional) 1 x D-Sub Port – 1 x HDMI Port: HDMI2 (Internal) – 1 x HDMI Port: HDMI1 (Rear) * (Optional) 1 x DisplayPort 1.4 (DP1) + 1 x HDMI Port: HDMI1 (Rear) – 1 x USB 3.2 Gen2 Type-A Port (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (Supports ESD Protection) * (Optional) 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Support ESD Protection) – 1 x RJ-45 LAN Port with LED – HD Audio Jacks: Line out / Microphone |
| Unique Feature | ASRock Super Alloy – High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| Accessories | – I/O Shield (Optional) – 1 x SATA Data Cable (Optional) – 1 x SATA Power Cable (Optional) – 2 x Screws for M.2 Sockets – 1 x Screw for WiFi Module – 1 x Standoff for M.2 Socket |
| Hardware Monitor | – CPU Temperature Sensing – CPU Fan Tachometer – CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) – CPU Fan Multi-Speed Control – CASE OPEN detection – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | – Thin Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm (Compatible with Mini-ITX) – Solid Capacitor design |
| OS | – Microsoft Windows® 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
