ASUS today announced the Prime 750W Gold and 850W Gold power supplies, designed to give mainstream DIY PC users reliability and build quality without breaking the bank. The 750W and 850W Gold are the first power supplies to join the Prime family, bringing the ATX 3.0 standard, fully modular cables and an eight-year warranty. And whether it is the Prime AP201 MicroATX case or motherboards like the Prime Z790-A WiFi, the Prime series is synonymous with classy, understated designs that can look amazing in any build.
Table of Contents
Build-friendly features
ASUS Prime Gold Series power supplies are loaded with all of the features that PC builders have come to expect from a high-quality PSU. Both models are fully modular, allowing users to cut down on build clutter by only using the cables they need. As ATX 3.0-compatible power supplies, the ASUS Prime Gold Series units are also fully compatible with NVIDIA® GeForce RTX™ 40 series graphics cards, thanks to their native 16-pin 12VHPWR cable.
Meanwhile, dual-ball bearing fans ensure that all the power delivery components stay cool, with longer-lasting durability thanks to lower friction. And ASUS Prime Gold Series PSUs feature a stylish, outer space-inspired design. With one side black and the other white, these power supplies are sure to fit right into a wide variety of builds and cases. This space-age design is a great match for not only existing Prime motherboards and cases but also the Dual graphics card series, such as the ASUS Dual GeForce RTX 4070 OC and Dual GeForce RTX 4070 White OC.
ASUS Prime Gold Series Availability & Pricing
The ASUS Prime 750W Gold and 850W Gold PSUs will be available in the Philippines Q3 of 2023 with the following SRPs.
| MODEL | SRP |
| ASUS Prime AP-850G | PHP 7,440 |
| ASUS Prime AP-750G | PHP 6,730 |
ASUS Prime Gold Series Specifications

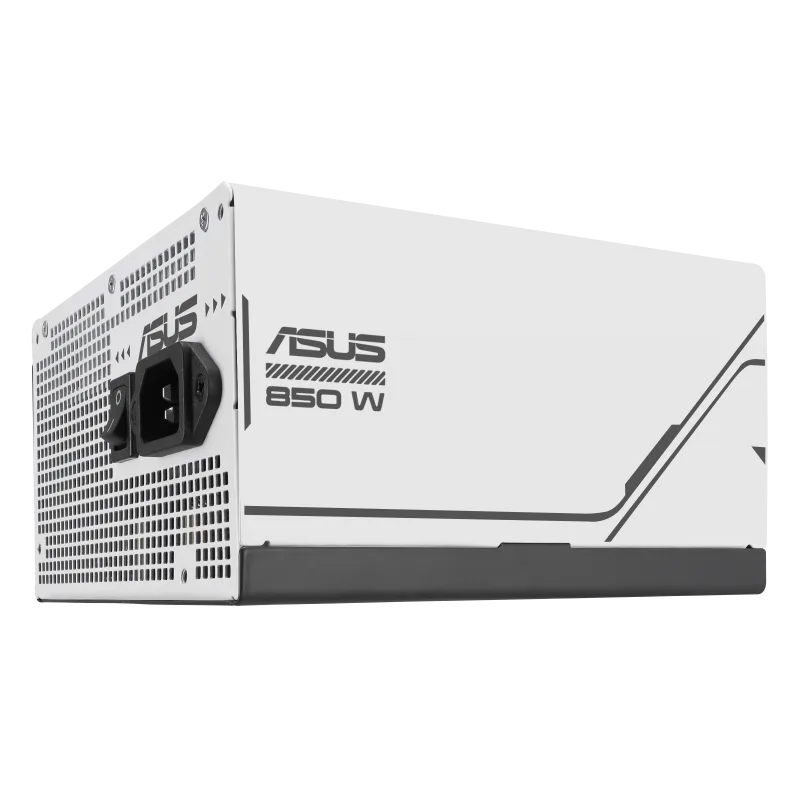

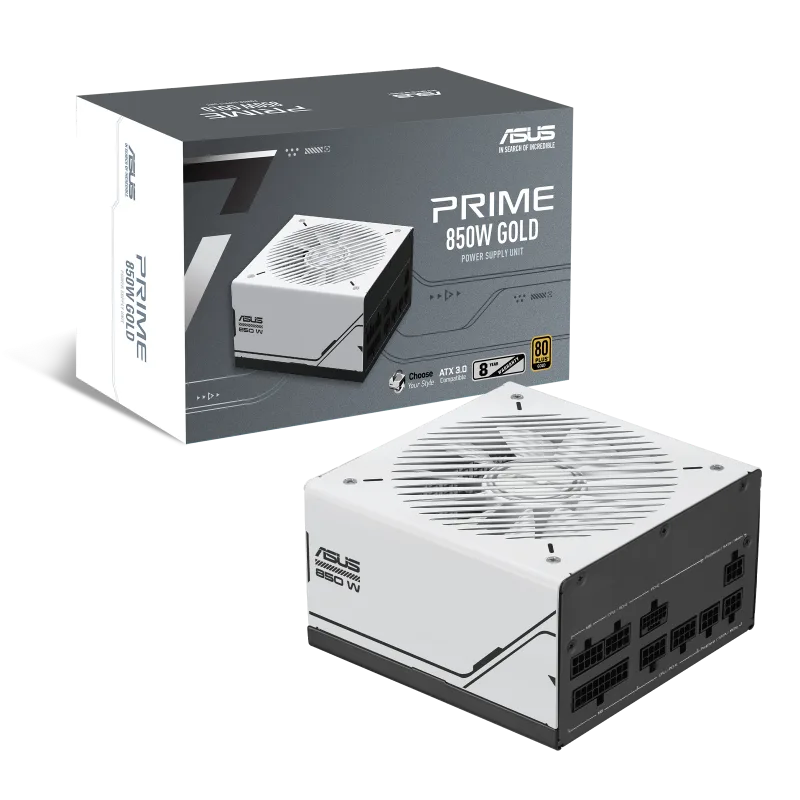

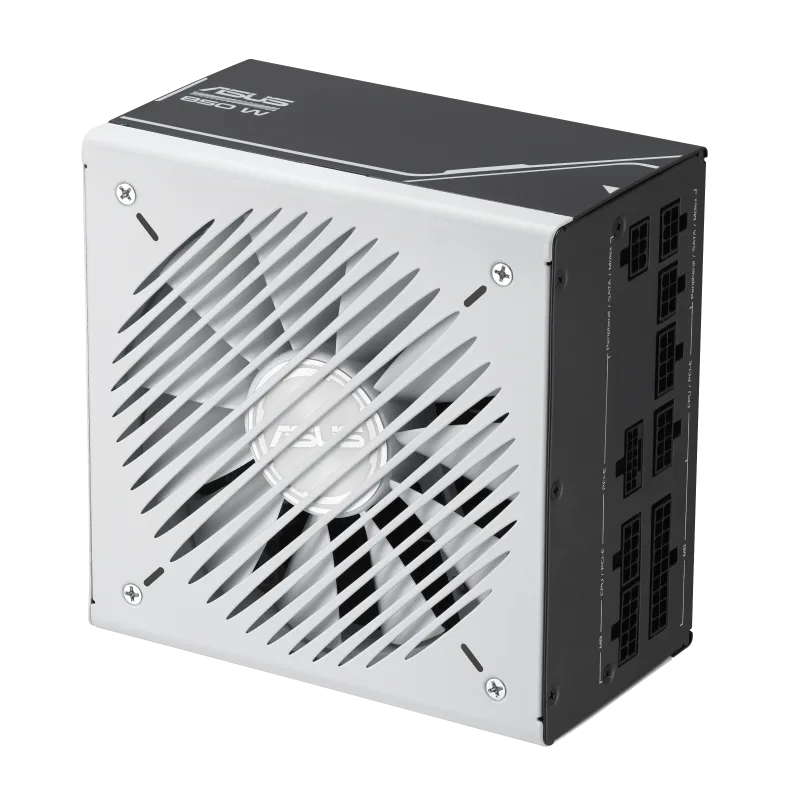

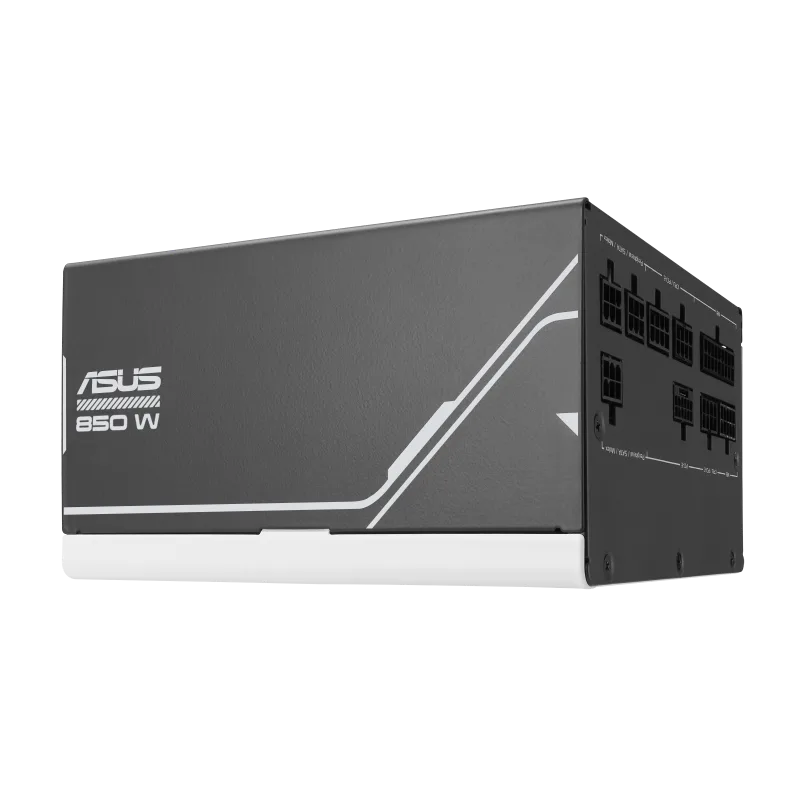

ASUS Prime 850W Gold
| Intel Form Factor | ATX12V |
| ATX 3.0 | Yes |
| Efficiency | 80 Plus Gold |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240 V |
| DC Output Voltage | +3.3 V +5 V +12 V -12 V +5 Vsb |
| Maximum Load | 20 A / 20 A / 70.5 A / 0.3 A / 2.5 A |
| Combined Load | 110 W 846 W 3.6 W 12.5 W |
| Total Output | 850 W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCIe® 16-pin x 1 PCIe® 8-pin x 3 SATA x 5 Peripheral x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610 mm) CPU Cable x 2 (650 mm) PCIe® Gen 5 16-pin Cable x 1 (675 mm) PCIe® Gen 5 (16-pin to 8-pin-8-pin) Cable x1 (675 mm) PCIe® 1-to-1 Cable x 1 (675 mm) SATA 1-to-2 Cable x 1 (400+120 mm) SATA 1-to-3 Cable x 1 (400+120+120 mm) Peripheral 1-to-3 Cable x 1 (400+150+150 mm) User Manual x 1 |
| Dimensions | 150 x 150 x 86 mm |
| Weight | 1.5 kg |
ASUS Prime 750W Gold
| Intel Form Factor | ATX12V |
| ATX 3.0 | Yes |
| Efficiency | 80 Plus Gold |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240 V |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 62A 0.3A 2.5A |
| Combined Load | 110W 744W 3.6W 12.5W |
| Total Output | 750W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610 mm) CPU Cable x 2 (650 mm) PCI-E Gen 5 16-pin Cable x 1 (675 mm) PCI-E Gen 5 (16-pin to 8-pin-8-pin) Cable x1 (675 mm) PCI-E 1-to-1 Cable x 1 (675 mm) SATA 1-to-2 Cable x 1 (400+120 mm) SATA 1-to-3 Cable x 1 (400+120+120 mm) Peripheral 1-to-3 Cable x 1 (400+150+150 mm) User Manual x 1 |
| Dimensions | 150 x 150 x 86 mm |
| Weight | 1.47 kg |
