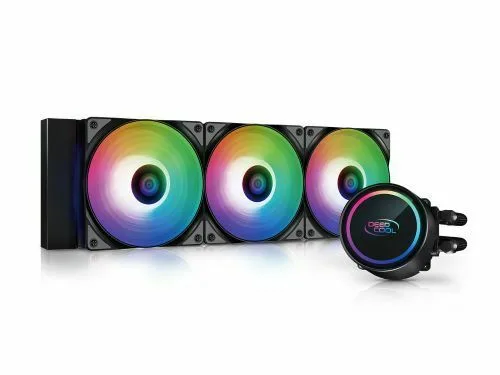

The GAMMAXX A-RGB L240/360 CPU Liquid Cooler was launched by DeepCool last February 9, 2021. Rooted in its success with its earlier AIO liquid coolers, DeepCool constantly seeks for innovative breakthroughs. And in doing so, by keeping safety first; GAMMAXX A-RGB series is equipped with DeepCool’s new standard for liquid cooling systems – Anti-Leak Technology. This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage risk.
Table of Contents
GAMMAXX A-RGB L240/360 Efficient Cooling

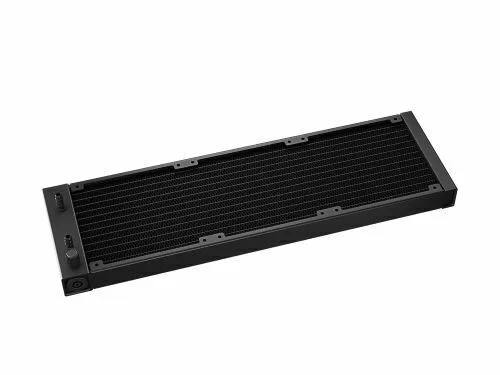

An E-Shaped micro water channel design effectively enhances heat transfer efficiency and circulation throughout the radiator.
Ultra Compatibility

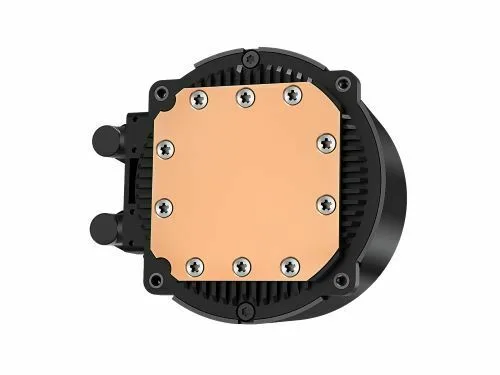

The large copper base provides more contact with CPU and supports mainstream Intel and AMD socket types. The package includes mounting plates compatible with either AMD or Intel CPUs.

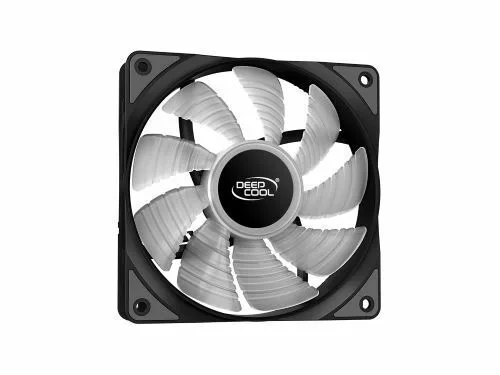

A-RGB and PWM Fans
There are three A-RGB fans packaged with the GAMMAXX L360 A-RGB Liquid Cooler. GAMMAXX L240 A-RGB Liquid Cooler includes Two A-RBG fans. The fans come with noise damping pads and support PWM control. Its A-RGB lighting can also synchronize with the waterblock, making the lighting effects match.
Choose Your Style
5v ARGB lighting for the GAMMAX A-RGB L240/360 AIO, also includes the waterblock. Coordinate colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

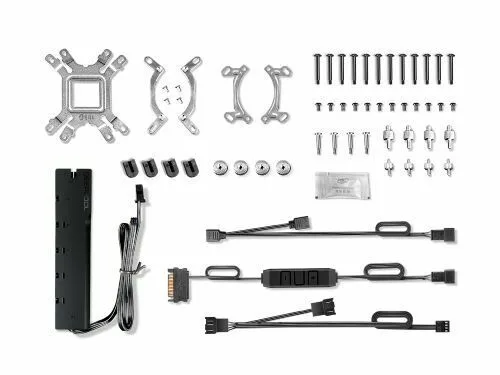

Convenient Mounting Tools
Installation on mainstream Intel and AMD systems is quick and straightforward, even for beginner PC builders. Each set includes extension wires for
GAMMAXX A-RGB L240/360 MSRP:
- GAMMAXX L240 A-RGB: $89.99 USD
- GAMMASS L360 A-RGB: $109.99 USD
The GAMMAXX A-RGB L240/360 Liquid AIO are available in February 2021
GAMMAXX A-RGB L240/360 Technical Specifications
GAMMAXX A-RGB L360 AIO
| Net Weight | 1696 g |
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 465 mm |
| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.21 A |
| Pump Power Consumption | 2.52 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500-1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Overall Noise | ≤39.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 6.6 W（FAN×3） |
| EAN | 6933412727170 |
| P/N | DP-H12CF-GL360-ARGB |
GAMMAXX L240 A-RGB AIO
| Net Weight | 1330 g |
| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 380 mm |
| Pump Dimensions | 91×79×47 mm |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 69.34 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤30 dB(A) |
| Overall Noise | ≤37.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP）/ 4.4 W（FAN×2） |
| EAN | 6933412727163 |
| P/N | DP-H12CF-GL240-ARGB |
