Colorful Technology Company Limited, a prominent name in gaming PC hardware, gaming laptops, and HiFi audio solutions, has introduced its refreshed BATTLE‑AX motherboard series led by the newly updated BATTLE‑AX B860M‑PLUS S WIFI7. The latest revision brings Wi‑Fi 7 support and a series of platform refinements aimed at improving overall system responsiveness and connectivity.
The BATTLE-AX B860M-PLUS S WIFI7 is built to support the latest Intel Core Ultra 200S series processors, positioning it as a forward-looking option for new builds, while both models introduce improved power delivery, enhanced connectivity including Wi-Fi 7, and more user-friendly installation features compared to their predecessors.
Related: COLORFUL Presents Intel Z890 Motherboard Lineup for the Intel Core Ultra 200 Series
Table of Contents

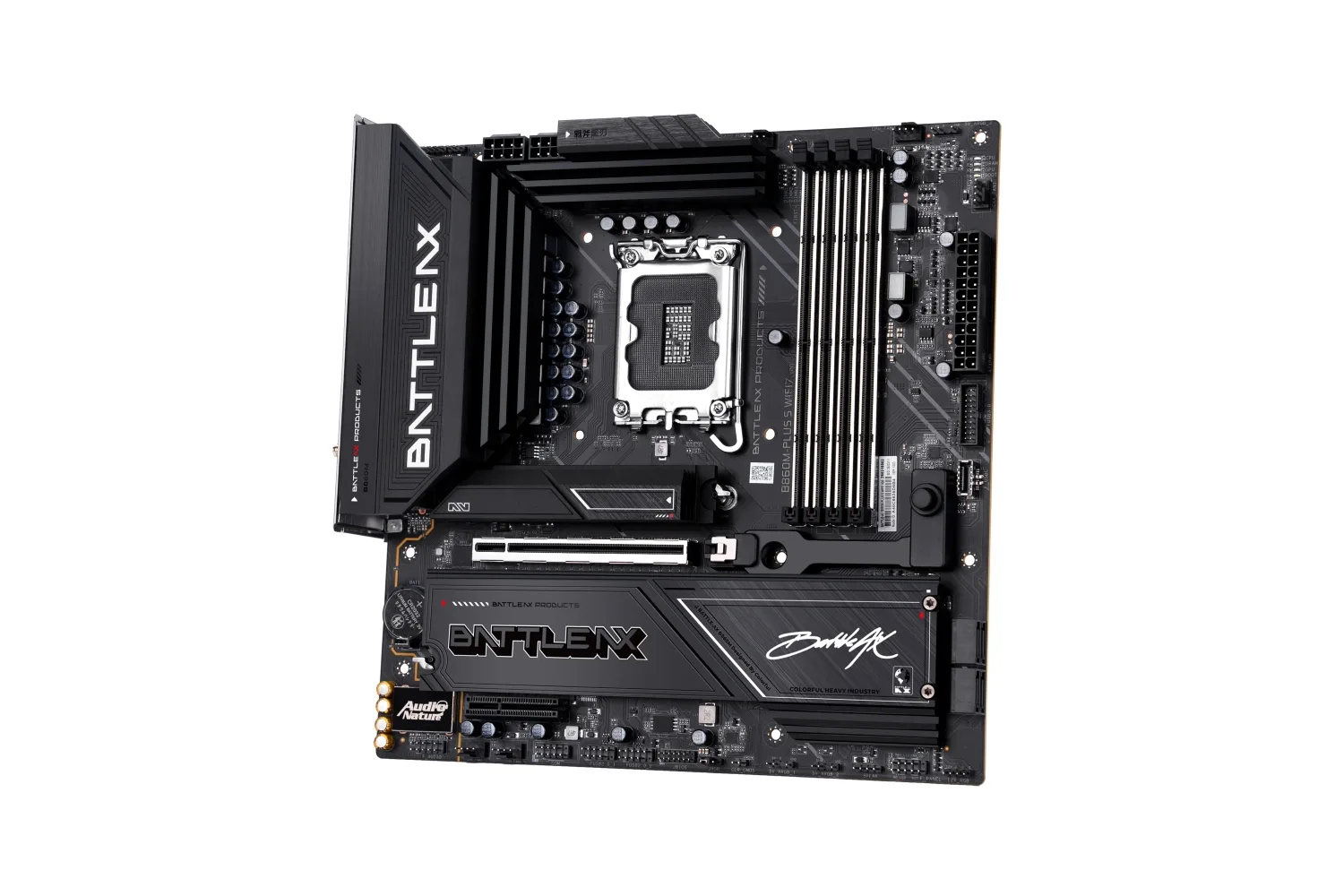

COLORFUL BATTLE-AX B860M-PLUS S WIFI7
Designed for modern platforms, the BATTLE-AX B860M-PLUS S WIFI7 features a 10+1+1+1 phase 60A DrMOS power design to ensure stable and efficient power delivery. The motherboard includes three M.2 slots, including one PCIe 5.0 x4 slot, along with four SATA ports for flexible storage configurations.
Key Features
• 10+1+1+1 phase 60A DrMOS power design
• Three M.2 slots (1x PCIe 5.0 x4) and four SATA ports
• Six rear USB Type-A and two USB Type-C ports
• 5GbE LAN and Wi-Fi 7 networking
• Four reinforced DDR5 slots supporting up to 8800 MT/s (OC)
• Optimized for single-DIMM gaming performance
• Tool-free GPU quick-release and M.2 heatsink design
The board supports dual-channel DDR5 memory at speeds of up to 8800 MT/s and is optimized for single-DIMM configurations, making it suitable for users seeking strong gaming performance on a tighter budget. When paired with Intel Core Ultra 200S series processors and Intel APO, users can further enhance overall system and gaming performance.
Ease of use is also a key highlight, with tool-free GPU and M.2 installation mechanisms simplifying upgrades and maintenance, making the platform more accessible for first-time builders.

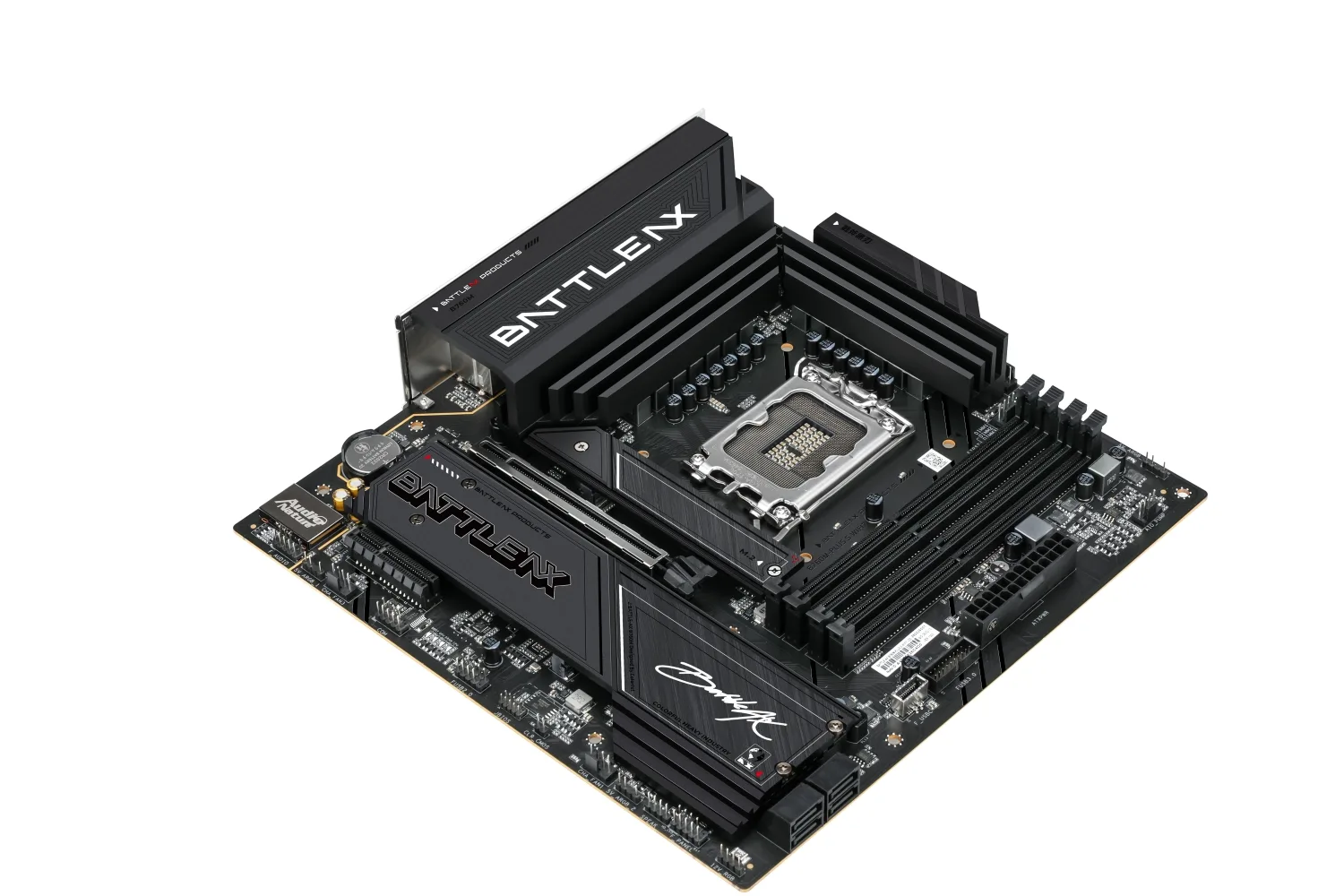

COLORFUL BATTLE-AX B760M-PLUS S WIFI7
The B760M-PLUS S WIFI7 targets value-oriented builds by supporting DDR4 memory, making it a practical option for users upgrading from older systems. It is compatible with Intel 12th, 13th, and 14th Gen Core processors.
Key Features
• 12+1+1 phase 60A DrMOS power design
• Supports Intel 12th, 13th, and 14th Gen Core processors
• Four DDR4 slots supporting up to 4800 MHz (OC)
• Reinforced PCIe 5.0 x16 slot for next-generation GPUs
• Three PCIe 4.0 M.2 slots with full-coverage heatsinks
• Wi-Fi 7 module for improved wireless connectivity
The motherboard’s 12+1+1 phase 60A DrMOS design delivers stable performance even under sustained heavy workloads, including when paired with high-performance processors such as the Core i7-14700K. It also features a reinforced PCIe 5.0 x16 slot, ready for next-generation graphics cards, including RTX 50 series GPUs.
Three PCIe 4.0 M.2 slots equipped with full-coverage heatsinks help maintain optimal storage performance under load. The addition of Wi-Fi 7 provides lower latency and more stable wireless connectivity, improving the overall gaming and streaming experience.
Specifications
| Model | BATTLE-AX B860M-PLUS S WIFI7 | BATTLE-AX B760M-PLUS S WIFI7 |
| Power Phase Design | 10+1+1 Power Phase (Dr MOS 60A) | 12+1+1 Power Phase (Dr MOS 60A) |
| Memory Support | 4x DDR5 DIMM Socket Dual-Channel*, Support XMP *Single memory supports up to 48GB capacity, total memory capacity supports up to 192GB DDR5- 8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/ 7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600MHz Memory | 4x DDR4 DIMM Socket Dual-Channel*, Support XMP *Single memory supports up to 32GB capacity, total memory capacity supports up to 128GB DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3200/3000/2933/2800/2666/2400/2133MHz Memory |
| Expansion Slot | 1x PCIe 5.0 x16 1x PCIe 4.0 x4 | 1x PCIe 5.0 x16 1x PCIe 3.0 x4 |
| Storage Support | 4x SATA 6Gb/s 1x PCIe 5.0 x4 M.2 SSD 2x PCIe 4.0 x4 M.2 SSD | 4x SATA 6Gb/s 3x PCIe 4.0 x4 M.2 SSD |
| Internal Connectors | 1x 24-pin M-ATX Power connector 2x 8-pin CPU Power connector 1x Front USB 3.2 Gen 1 Type-C 2x Front USB 3.2 Gen 1 Type-A (one pin) 4x Front USB 2.0(two pins) | 1x 24-pin M-ATX Power connector 8-pin+4-pin CPU Power connector 1x Front USB 3.2 Gen 2 Type-C 2x Front USB 3.2 Gen 1 Type-A (one pin) 2x Front USB 2.0 (two pins) |
| I/O Ports | 1x USB 3.2 Gen 2×2 Type-C 1x USB 3.2 Gen 1 Type-C 4x USB 3.2 Gen 1 Type-A 2x USB 2.0; 1x HDMI port; 1x DP port; | 1x USB 3.2 Gen 2 Type-C 2x USB 3.2 Gen 1 Type-A; 4x USB 2.0; 1x HDMI port; 1x DP port; |
| LAN | RTL8126-CG 5G + Wi-Fi 7, Support Bluetooth 5.4 | RTL 8125BG 2.5G + Wi-Fi 7, Support Bluetooth 5.4 |
| Audio | 7.1-Channel High-Definition audio CODEC | 7.1-Channel High-Definition audio CODEC |
| Dimensions | 245mm*245mm, M-ATX | 245mm*245mm, M-ATX |
Pricing and Availability
For more information on availability and pricing on both BATTLE-AX B860M PLUS WiFi7 and B760M PLUS WiFi7, please contact your local COLORFUL Technology representative.
